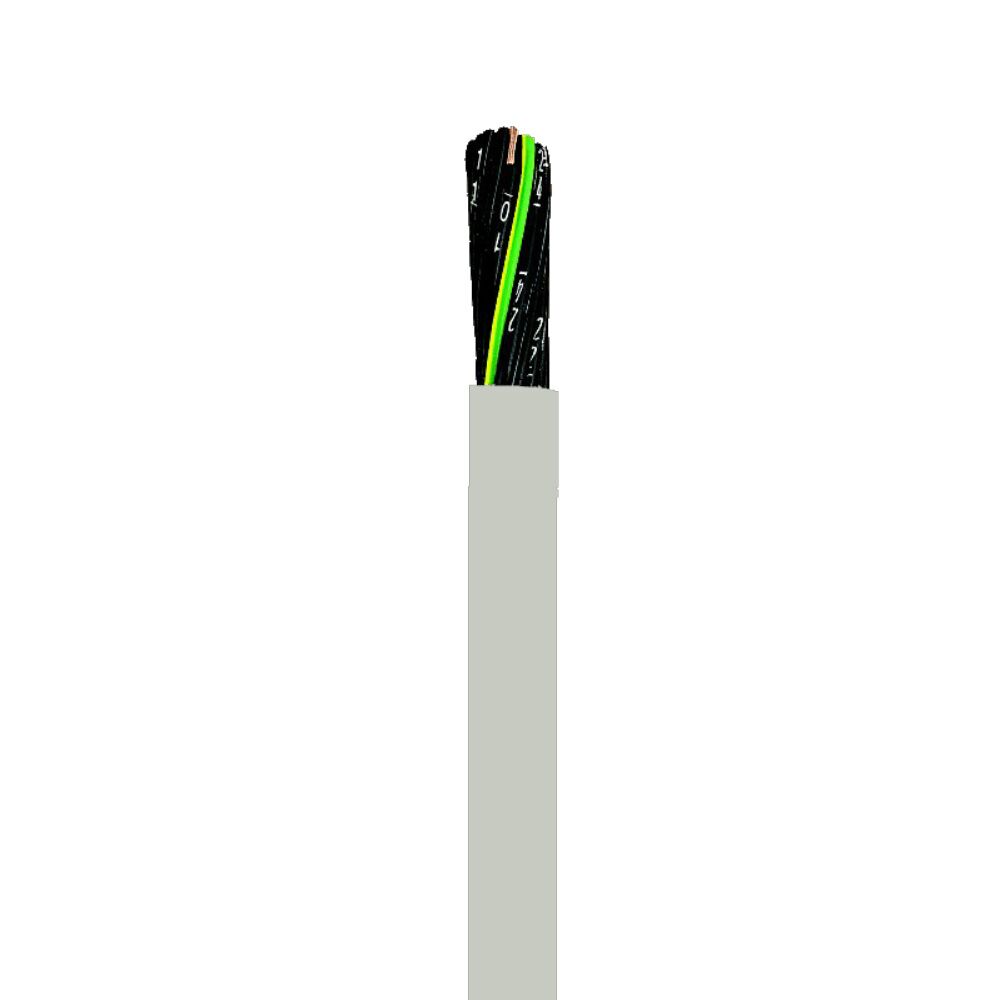

For flexible use. For medium mechanical stress with free movements without tensile stress or forced movements in dry. moist. and wet rooms. Not suitable for open air. Usable as industrial machineries conveyor systems or in industrial plants. The green-yellow earth core is laid in the outer layer.
| Standard | : | Adapted to DIN VDE 0245. 0281. 0293. 0295 Self extinguishing PVC to IEC 60332-1 |
| Conductor | : | Bare copper. Fine wire conductors according to IEC 60228 cl. 5 |
| Insulation | : | Core insulation of special PVC |
| Black cores with continuous white numbering | ||
| according to DIN VDE 0293 | ||
| Green-yellow earth core in the outer layer (3 cores and above) | ||
| Cores stranded in layers with optimal lay-length | ||
| Sheath | : | Outer sheath of special PVC |
| Colour grey |
| Temperature Range | : | Flexing: -5 °C to + 80 °C |
| Fixed installation: -40 °C to + 80 °C | ||
| Nominal voltage | : | U/o/U 300/500v |
| Test voltage | : | 4000V |
| Breakdown voltage | : | min. 8000V |
| Insulation Resistance | : | min. 20 M0hm x km |
| Inductance | : | approx. 0.4 mH/km |
| Power Rating | : | acc. To DIN VDE 0298 |
| Minimum bending radius | : | Flexing: 7.5 x cable Ø |
| Fixed installation: 4 x cable Ø | ||
| Radiation resistance | : | up to 80×10⁶ cJ/kg (up to 80 Mrad) |
