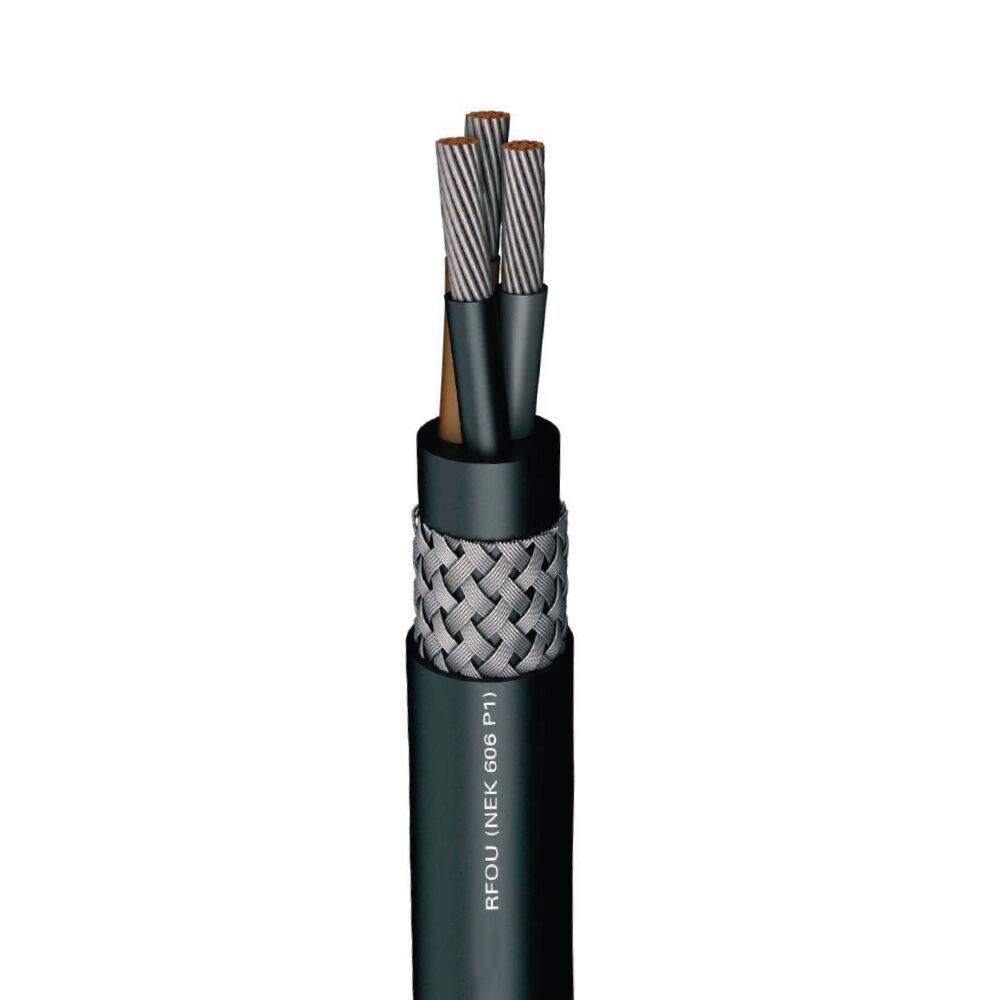

Fixed installation cable for power, control and lighting.
| Conductor | : | Electrolytic, stranded, tinned copper wire /EC 60228 Class 2 |
| (Class 5 on request) | ||
| Insulation | : | Halogen free EPR or Halogen free HEPR |
| Bedding | : | Halogen free compound |
| Screen | : | Electrolytic, tinned copper braided screen ( 90% coverage ) |
| Outer Sheath | : | SHF2, Black |
| Construction | : | NEK 606 P1, IEC 60092/353 |
| Tests And Material | : | IEC 60092 /350-351-359 |
| Flame Retardant | : | IEC 60332 /1, IEC 60332 / 3 Cat A |
| Halogen Content | IEC 60754 / 1 – 2 | |
| Smoke Density | : | IEC 61034 / 1-2 ( DIN EN 50268/1-2) |
| Working Temperature | : | -40°C / + 90°C |
| Min. Bending Radius (fixed) | : | 8 x (overall diameter) |
| Rated Voltage | : | 0,6 / 1 kV |
| Test Voltage | : | 3,5 kV |
