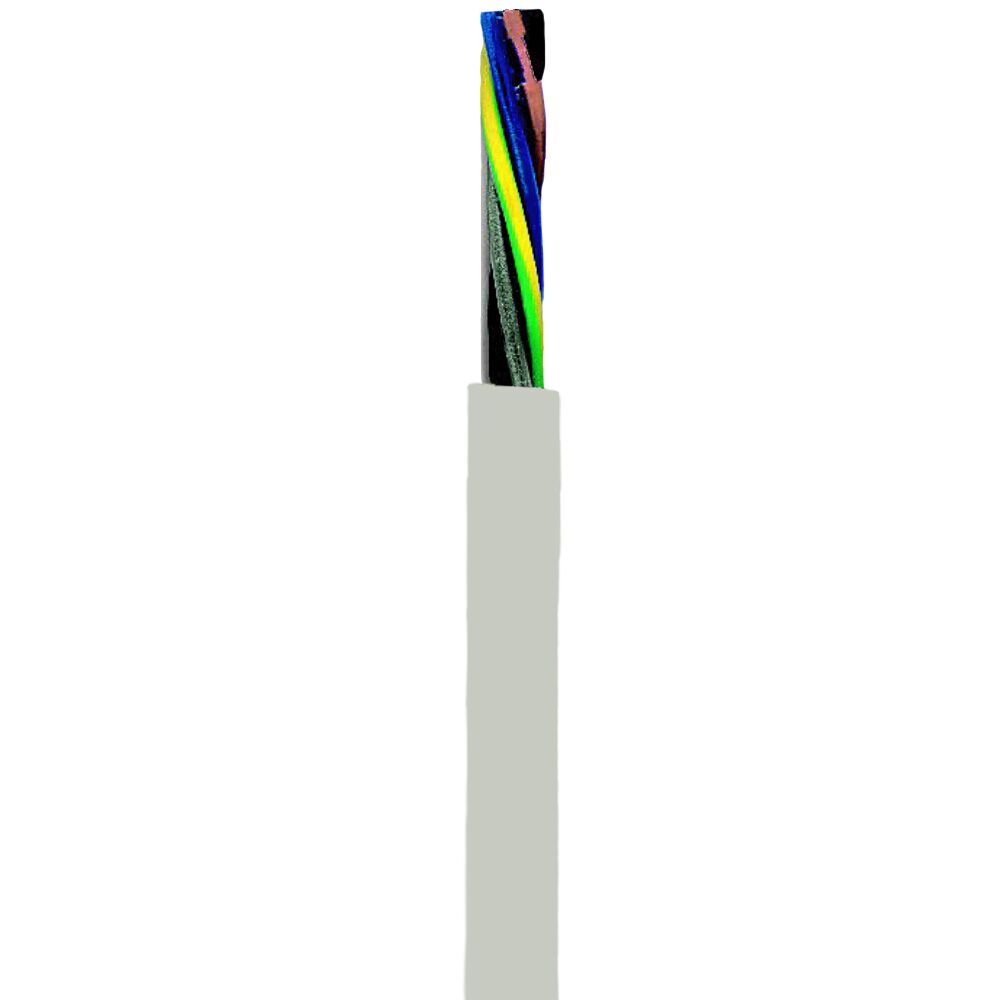

For flexible use. For medium mechanical stress with free movements without tensile stress or forced movements in dry. moist and wet rooms. Not suitable for open air. wherever internationally recognized PVC cables are required. Usable as control cable on industrial machineries. conveyor systems or in industrial plants. The green-yellow earth core is laid in the outer layer.
| Standard | : | Requirements adapted to DIN VDE 0245. 0281. 0293. 0295 |
| PVC self-extinguishing and flame retardant according to IEC 60332-1 | ||
| Conductor | : | Bare copper. Fine wire conductors as per IEC 60228 cl.5 |
| Insulation | : | Core insulation of special PVC |
| Insulation | : | Cores colour coded as per JB/OB colour code |
| Green-yellow earth core in the outer layer (3 cores above) | ||
| Cores stranded in layers with optimal lay-length | ||
| Sheath | : | Special PVC outer sheath |
| Colour grey | ||
| Resistant | : | Extensively oil resistant |
| Chemical resistance |
| Temperature Range | : | Flexing: -5°C to +80°C |
| Fixed installation: -40°C to +80°C | ||
| Nominal voltage | : | Uo/U 300/500 V |
| Test voltage | : | 4000V |
| Breakdown voltage | : | min. 8000V |
| Insulation Resistance | : | min. 20 MOhm x km |
| Inductance | : | approx. 0.4 mH/km |
| Power Rating | : | acc. To DIN VDE 0298 |
| Minimum bending radius | : | Flexing: 7.5 x cable Ø |
| Fixed installation: 4 x cable Ø | ||
| Radiation resistance | : | up to 80 x 10⁶ cJ/kg (up to 80 Mrad) |
