This cable is suitable to be used in cable ducts, underground, outdoors and indoors installation, in water and on cable trays for industries. During transfer in interiors it must be considered that the PE coat is not flame adverse according to VDE 0472 T. 804, test kind B. the cable is for unfavorable operating conditions been suitable, in particular if after mechanical damages the penetration of water in longitudinal direction is to be avoided.

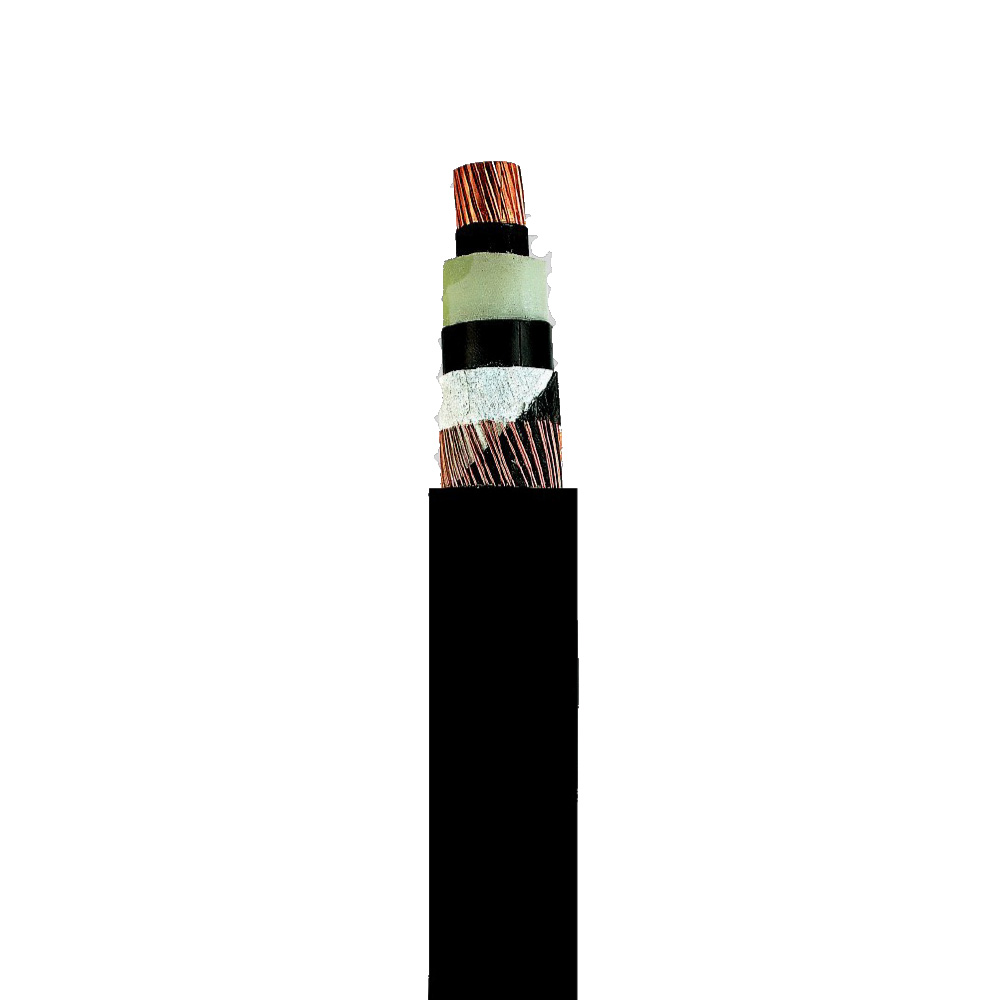

| Conductor | : | Inner semi conducting coating |
| Circular bare Cu- conductor of stranded wires to IEC 60228 cl.2 | ||
| Outer extrusion of semi-conducting coating spliced with the XLPE-insulation | ||
| Longitudinally water-tight, conductive wrapping | ||
| Insulation | : | Conductor insulation of cross-linked Polyethylene (XLPE), PE compound DIX8 to HD 620.1 |
| Sheild | : | Braiding of copper wires with one or two tapes applied helically |
| Outer Jacket | : | Jacket color black |
| Temperature range | : | During installation up to -20°C |
| Operating temperature | : | max 90°C |
| Nominal voltages | : | Uo/U 6/10 kV |
| 12/20kV | ||
| 18/30kV | ||
| Operating voltages | : | 6/10kV = max.12 kV |
| 12/20kV = max. 24 kV | ||
| 18/30kV = max.36 kV | ||
| Test voltages | : | 6/10 kV = 15 kV |
| 12/20 kV = 30 kV | ||
| 18/30 kV = 45 kV | ||
| Minimum bending radius | : | During installation max.15x cable Ø |
