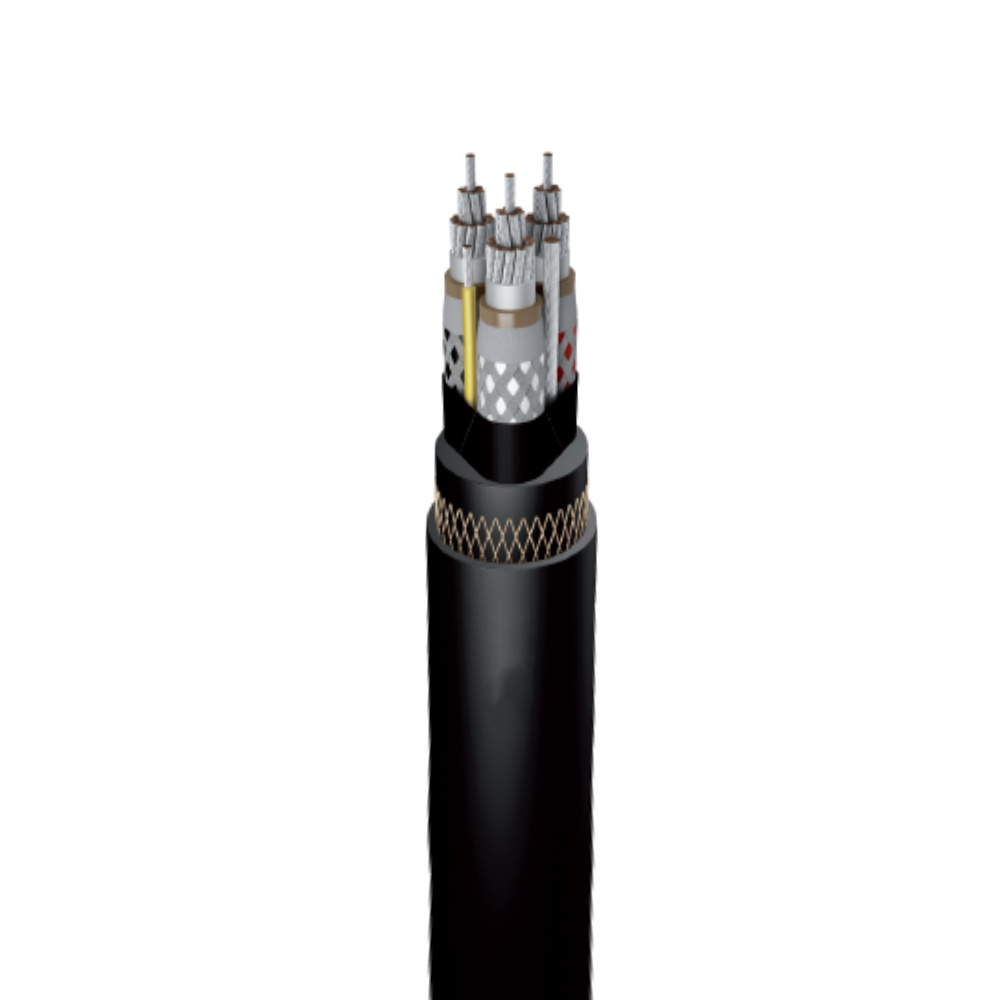

Conductors
|
: |
Annealed flexible stranded tinned copper ASTM B 172 and ICEA S-75-381, Tab. 3-22 |
| Separator |
: |
Polyester tape between conductor and insulation. ICEA S-75-381 |
| Insulation |
: |
Ethylene-propylene rubber (EPR). ICEA S-75-381, Tab. 3-22 |
| Insulation shield |
: |
None-conducting bedding tape +Composite tinned copper/polyamide braid. Coverage minimum 60% |
| Circuit identification |
: |
The polyamide in the shielding braid is coloured black, white, red in accordance with ICEA S-75-381 |
| Grounding |
: |
Annealed tin coated copper acc. Tab. 3-25 of ICEA S-75-381 |
| Ground check |
: |
Yellow polypropylene – insulated tinned copper conductor. ICEA S-75-381 Tab. 3-22 |
| Assembly |
: |
Three power, the ground check, two non-insulated grounding cabled together to form a round cable core |
| Separator |
: |
Polyamide open braid applied overall |
| Outer jacket |
: |
Black, extra heavy duty, high torsion resistant, integral-filled, reinforced poly-chloroprene thermosetting jacket |
Colour of outer jacket
|
: |
Black or other colours can be provided |
| Minimum bending radius |
: |
Eight times overall diameter of the cable |
