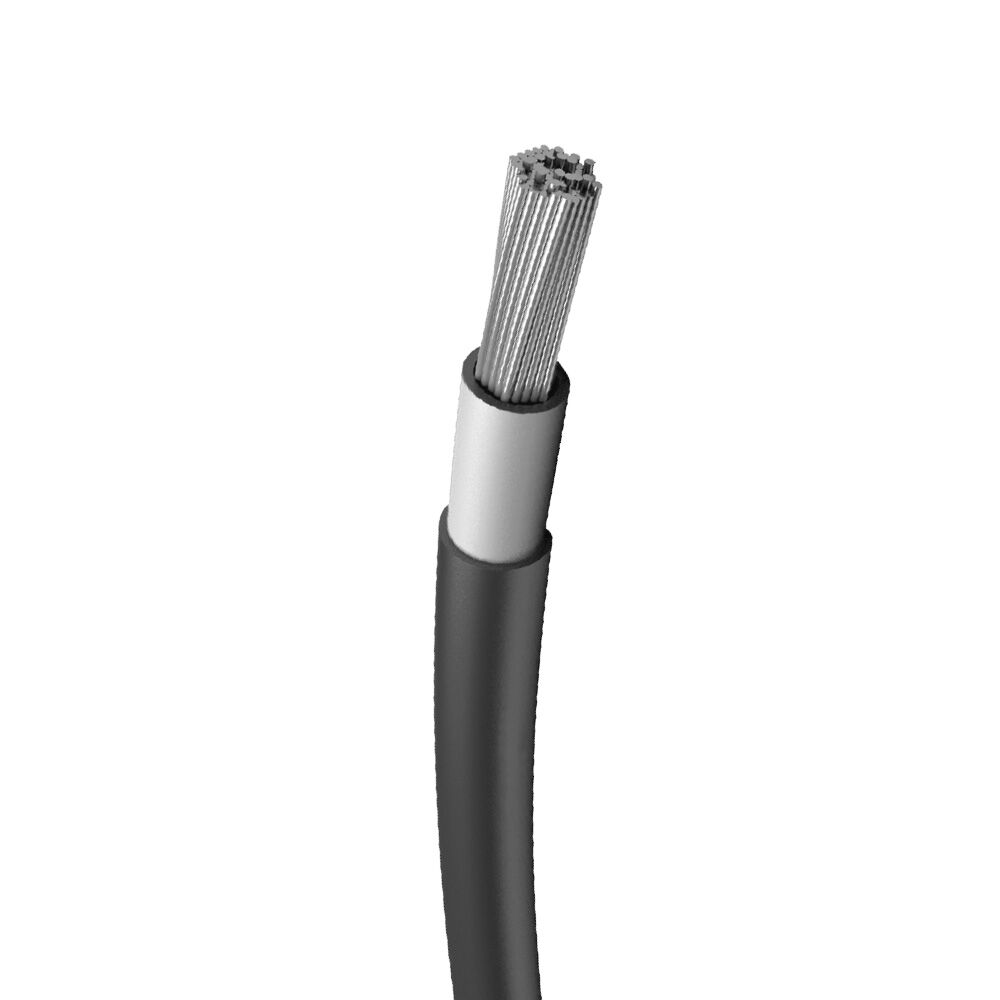

Photovoltaic cables are used in Photovoltaic (PV) Systems, in particular for installation at the Direct Current (DC) side. These low smoke, halogen free, flame retardant and UV resistant solar cables are suitable for permanent outdoor applications for many years under various climate-demanding conditions. Relatively stringent requirements are set for these products in line with the expected harsh usage conditions. These cables can also be used together with Class II equipment on site.
| Standard | : | EN 50618 / IEC 62930 |
| Conductor | : | Flexible tinned copper stranded to IEC 60228 Class 5 Standard |
| Insulation | : | Halogen-free cross-linked polyolefin compound (XLPO), White Colored |
| Sheath | : | Halogen-free cross-linked polyolefin compound (XLPO), Flame Retardant, Black Colored |
| Nominal voltage Uo/U | : | AC Uo/U: 1.0 / 1.0 kV |
| DC Uo/U: 1.5 / 1.5 kV | ||
| Testing voltage | : | DC Voltage: 15Vdc / 5 minutes |
| AC Voltage: 6.5Vac / 5 minutes | ||
| Permitted outer cable temperature (Fixed) | : | 40 °C to +90 °C |
| Permitted outer cable temperature (Moving) | : | 25 °C to +60 °C |
| Maximum conductor temperature | : | 120 °C |
| Maxumum short cicuit temperature (5 sec.) | : | 250 °C |
| Minimum bending radius (Fixed) | : | 4 x OD |
| Minimum bending radius (Moving) | : | 6 x OD |
| Maximum pulling tension | : | 15N/mm2 |
| Flame Retardant | : | Acc. to IEC 60332-1 standard |
| Low Smoke Density | : | Acc. to IEC 61034-2 standard |
| Toxic Gases Corrosivity | : | Acc. to IEC 60754-1 standard |
| Weather/UV Resistant | : | Acc. to EN 50289 standard |
| Ozone Resistant | : | Acc. to EN 50396 standard |
| Acid/Alkaline Resistant | : | Acc. to EN 50618 standard |
| Absence of harmful substances | : | Acc. to RoHS directive 2002/95/EC |
