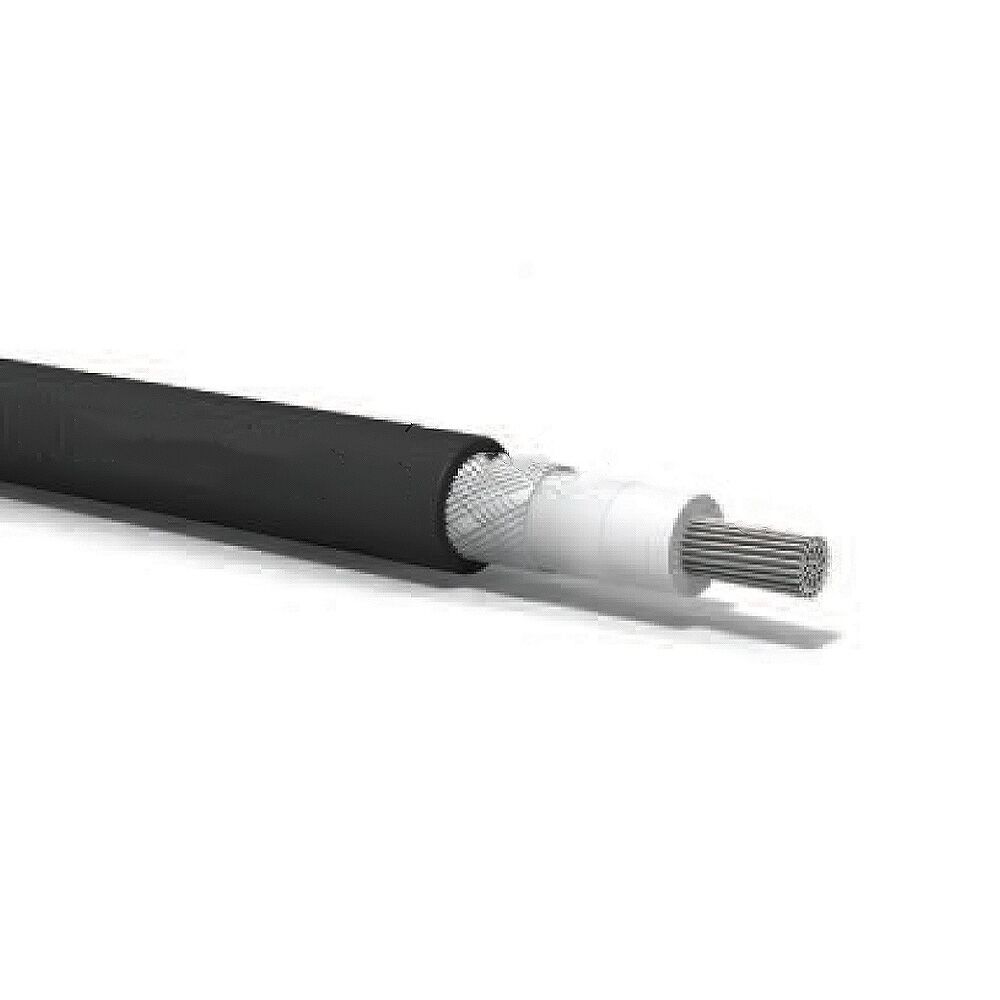

Suitable for the interconnection of the components of PV systems are characterized by: optimum mechanical properties in a range of operating temperature – 40 to + 90 ° C. high abrasion resistance. tear. UV. ozone . water. flame propagation. low smoke. halogen-free. weather resistance that allows a period equal to the life of the PV system. Moreover. they provide adequate protection against rodents and termites.
| Standard | : | CEI EN 60228 |
| Conductors | : | annealed tinned copper cl.5 |
| Insulation | : | crosslinked non-toxic elastomer |
| Assembling | : | Pet tape |
| Colour cores | : | braid of galvanized steel |
| Sheath | : | crosslinked non-toxic elastomer |
| Sheath colour | : | black RAL 9005 |
| Flame retardant | : | CEI EN 60332-1-2 |
| Halogen free | : | (< 0.5 mg/g – 0.5%) |
| CEI EN 50267-2-1/2 – IEC 60754-1/2 | ||
| Low toxic gases emission | : | (toxicity index < 2%) |
| CEI 20-37/4-0 | ||
| Low smoke emission | : | (trasmittance > 60%) |
| CEI EN 61034-2 | ||
| UV resistant | : | HD 605 |
| Ozone resistant | : | CEI EN 50396 |
| Long-term behavior | : | (20000 h at 120 °C) |
| CEI EN 60216 | ||
| Expected life | : | 25 years |
| DC resistance | : | according to CEI EN 60228 |
| Current capacity | : | CEI 20-21 – IEC 60287 |
| Rated voltage Uo/U | : | 0.6/1 kVac 0.9/1.5 kVdc |
| Max voltage | : | 1.2 kVac 1.8 kVdc |
| Testing voltage | : | 6.5 kVac 15 kVdc |
| Max working temperature | : | 90 °C |
| Min. working temperature | : | -40 °C |
| Short-circuit temperature | : | 250 °C |
| Min. installation temperature | : | -25 °C |
| Bending radius | : | Ø x 14 |
