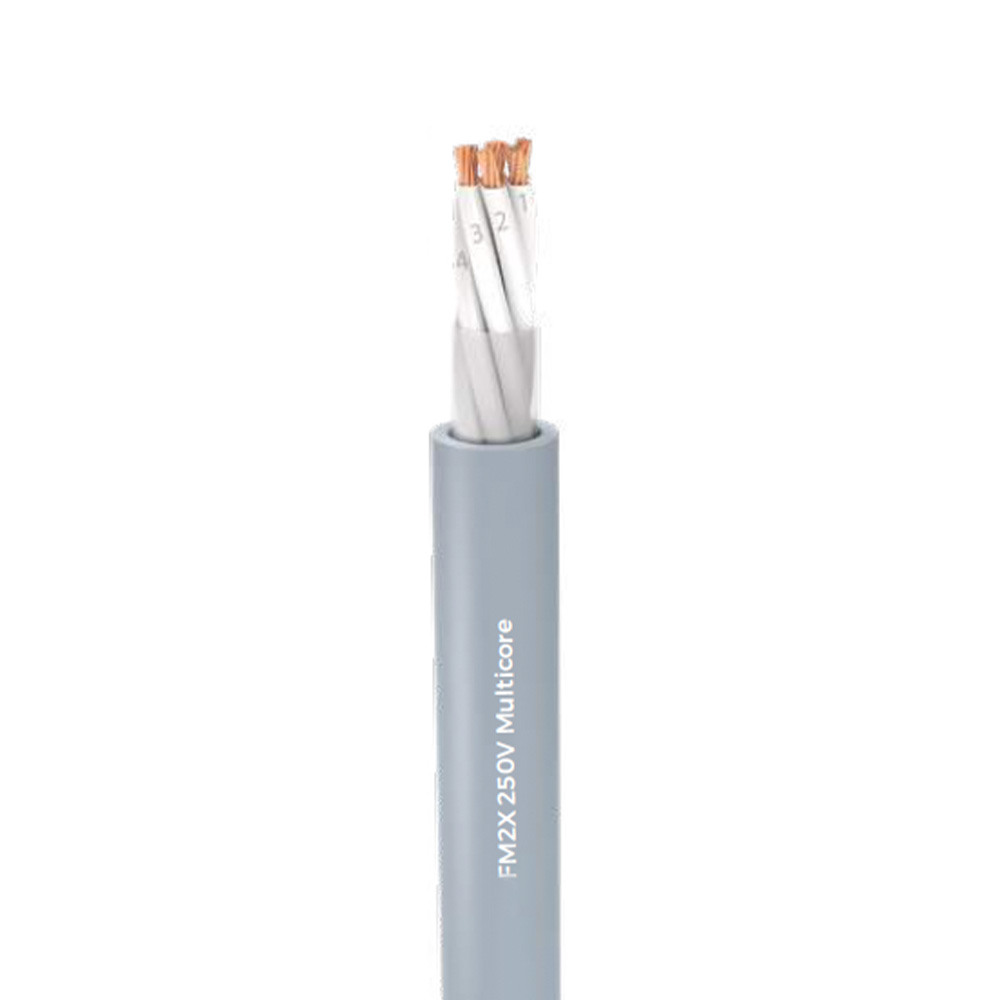

Used as control and signal cables in various electromechanical and electronic equipments of marine vehicles, in most areas & on open deck in ships.
| Conductor | : | Electrolytic, stranded, annealed copper wire IEC 60228 Class 2 (Class 5 and / or tinned on request) |
| Insulation | : | Cross linked polyethylene compound (XLPE) |
| Inner Covering | : | Separating foil |
| Outer sheath | : | Halogen-free, flame retardant, polyolefin based compound (SHF 1) |
| Color | : | Black or Grey |
| Construction | : | IEC 60092 / 376 |
| Tests And Material | : | IEC 60092 / 350-360 |
| Flame Retardant | : | IEC 60332 / 1, IEC 60332 – 3-22 Cat A |
| Halogen Content | : | IEC 60754 / 1-2 |
| Smoke Emission | : | IEC 61034 / 1-2 (DIN EN 50268 / 1-2) |
| Ozon Resistance | : | IEC 60811 / 403 |
| Working Temperature | : | -40°C / + 90°C |
| Min. Bending Radius (fixed) | : | For cables D ≤ 25 mm 4xD |
| For cables D > 25 mm 6xD | ||
| Rated Voltage | : | 150 / 250 V (300) |
| Test Voltage | : | 1,5 kV |
