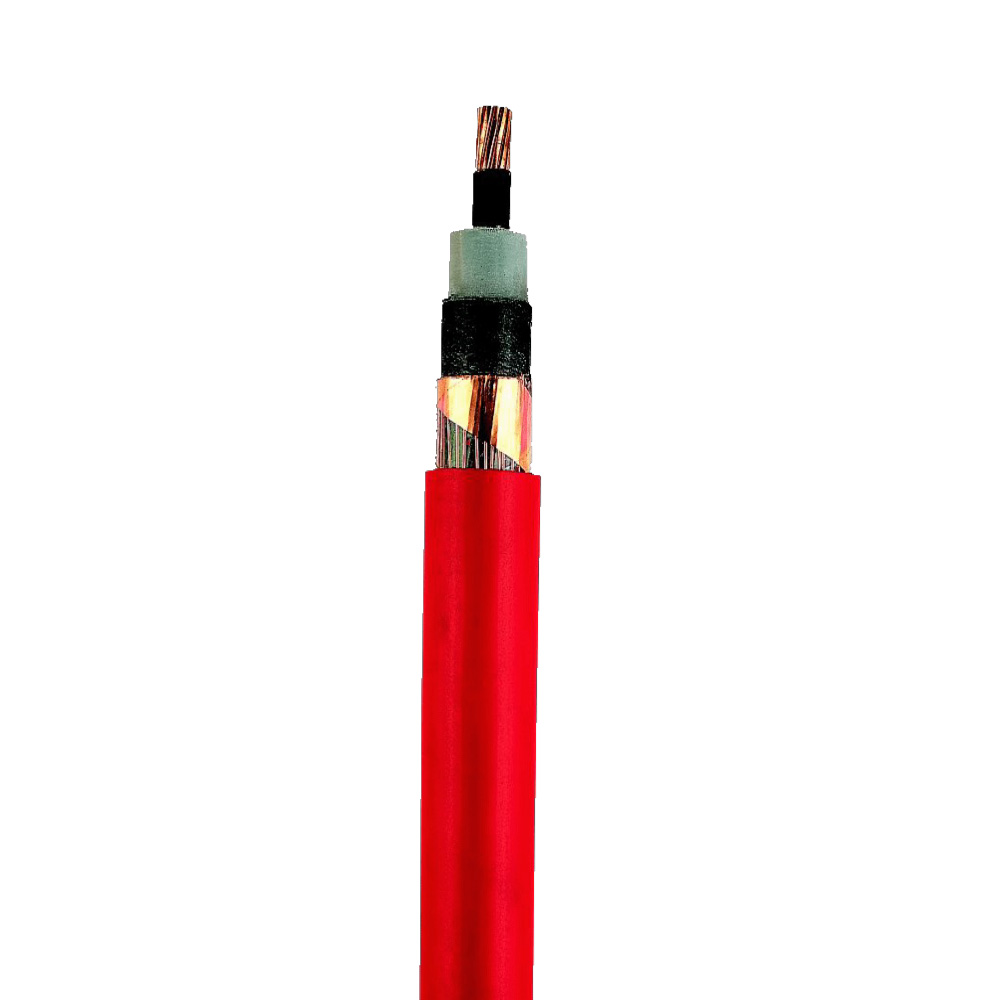

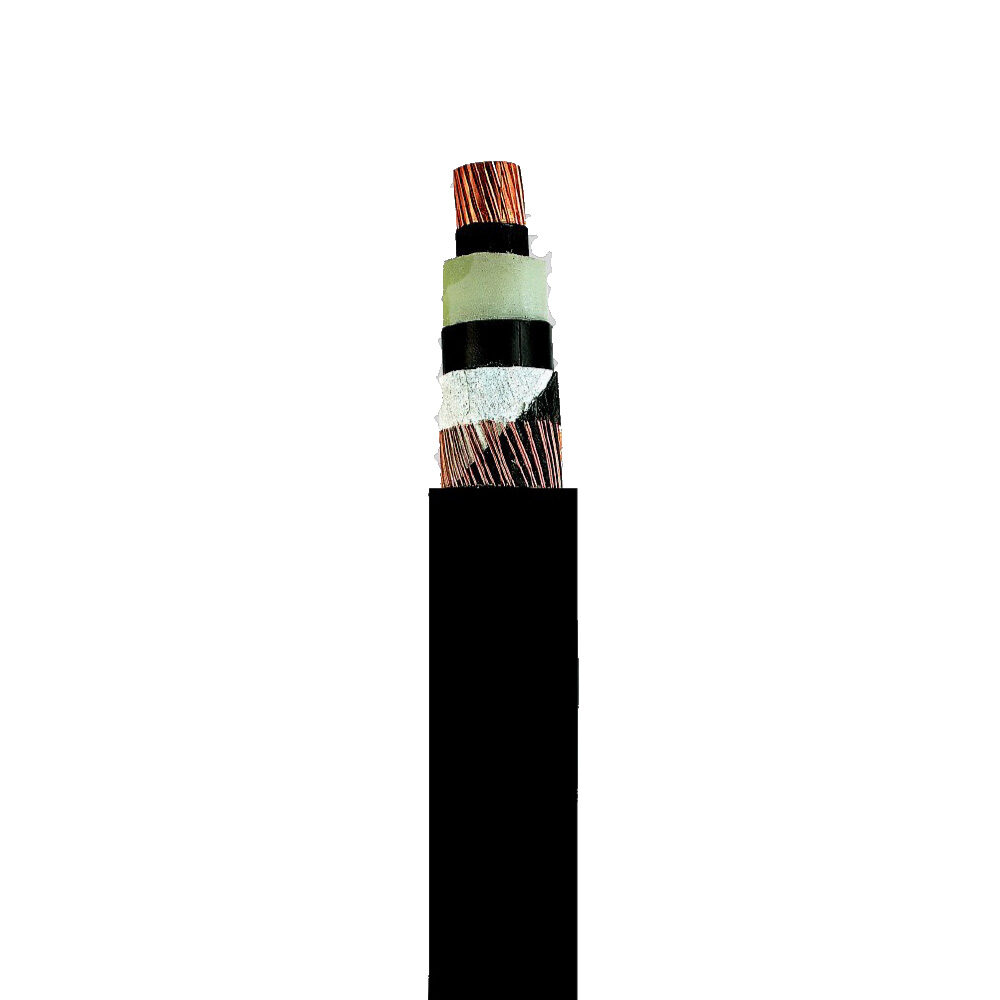

Energy distribution cable for fixed installation in buildings, for direct laying in concrete, water and under ground. To ensure an optimum on operating reliability, the extruded semi-conductive layer is spliced together with the insulation for long duration.
| Conductor | : | Inner semi conducting coating |
| Circular bare Cu- conductor of stranded wires to IEC 60228 cl.2 | ||
| Outer extrusion of semi-conducting coating spliced with the XLPE-insulation | ||
| Longitudinally water-tight, conductive wrapping | ||
| Insulation | : | Conductor insulation of cross-linked Polyethylene (XLPE), PE compound DIX8 to HD 620.1 |
| Shield | : | Braiding of copper wires with one or two tapes applied helically |
| Outer Jacket | : | Jacket color black |
| Temperature range | : | during installation up to -5°C |
| Operating temperature | : | max.90°C |
| Short circuit temperature | : | 250°C (short circuit duration up to 5 sec) |
| Nominal voltages | : | Uo/U 6/10 kV |
| 12/20 kV | ||
| 18/30 kV | ||
| Operating voltages for | : | 6/10 kV = max. 12 kV |
| 12/20 kV = max. 24 kV | ||
| 18/30 kV = max. 36 kV | ||
| Test voltages for | : | 6/10 kV = 15 kV |
| 12/20 kV = 30 kV | ||
| 18/30 kV = 45 kV | ||
| Minimum bending radius | : | during installation max. 15 x Ø |
